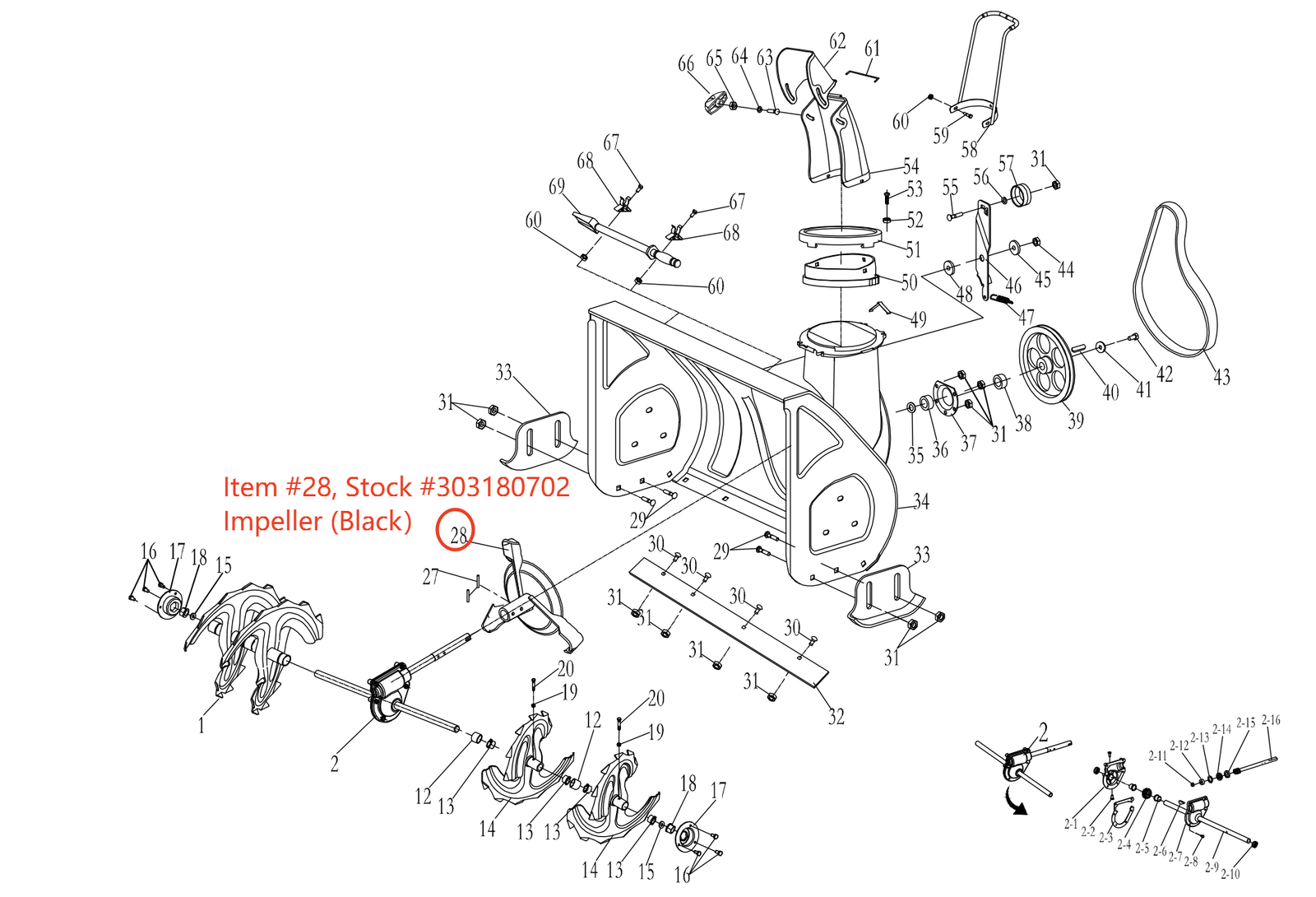

The snow blower impeller is the fan behind the auger on a two stage machine, stock number 303180702, and it is the part that actually throws the snow. Almost every complaint about a machine that clears fine but only dribbles snow a few feet comes back to it. If a snow blower impeller is what you are after, this is the listing and these are the details worth knowing.
On this page
This snow blower impeller in practice
This is the whole reason two stage machines exist, and it is worth being precise about.
The auger gathers. A snow blower impeller throws. The auger turns slowly, with high torque, and its job is to break the snow up and feed it into the centre of the housing. It throws nothing. The snow blower impeller sits behind that opening, turns several times faster, and flings what the auger delivers up the chute.
Separating the two jobs is what lets a two stage machine handle wet snow and gravel. The auger can run slowly enough to chew through packed snow without touching the ground, while the impeller runs fast enough to throw it a useful distance. A single stage against two stage comparison covers the wider trade.
Specifications
| Specification | Detail |
|---|---|
| Stock number | 303180702 |
| Part type | Impeller, two stage |
| Driven by | Impeller shaft, directly off the belt |
| Function | Accelerates snow up the discharge chute |
| Machine type | Two stage |
| Related | Impeller housing, chute, drive belt |
Why snow blower impeller tip speed sets throw distance
Throw distance is not about power. It is about the speed of the snow blower impeller blade tip at the moment it releases the snow, and that speed comes from two things only: how fast the impeller turns, and how big it is.
Double the rotational speed and you double tip speed. Double the diameter and you double it again. This is why a small machine with a strong engine still will not throw as far as a larger one, and why fitting a bigger engine to a machine with a small snow blower impeller changes almost nothing about how far the snow goes.
It also explains the most common real world symptom. Snow leaving the blade tip slower does not fail to leave, it just lands closer. So the first sign of a problem is never that the machine stops clearing. It is that the pile is suddenly beside the driveway instead of across it.
| Symptom | Usual cause |
|---|---|
| Clears fine, throw distance collapsed | Belt slipping, or impeller clearance |
| Throw drops only in wet snow | Clearance gap, snow slipping past the blade |
| Chute clogs repeatedly | Impeller not clearing the housing, or a worn belt |
| Vibration at speed | Bent or unbalanced impeller |
| Loud rattle, no throw | Sheared impeller pin |
Check the belt before you buy a snow blower impeller
A snow blower impeller is an expensive part and a slipping belt produces the same symptom, so work in the cheap order.
A glazed or stretched belt slips under load. The auger keeps turning because it needs less torque, but the snow blower impeller slows precisely when snow arrives, which is when you need the speed. The result is a machine that seems fine in light snow and useless in heavy snow, and it is the single most common cause of lost throw distance.
Look at the belt for a shiny glazed surface, cracking on the inner face, or a belt sitting low in the pulley groove. Any of those, replace it first. Then check the impeller pin: like the auger, the impeller is usually pinned to its shaft so that an impact breaks the pin rather than the gearbox. A sheared impeller pin gives a rattling machine that throws nothing at all.
When the snow blower impeller genuinely needs replacing
A snow blower impeller is steel and does not wear out in normal use. Three things end one.
Impact damage. A buried object that gets past the auger bends a blade. Even slightly bent, the impeller is now unbalanced, and unbalance at impeller speed destroys the shaft bearings quickly.
Corrosion at the blade roots. Salted meltwater sits where the blades meet the hub. Once the steel thins there the blade flexes under load, which costs throw distance long before it breaks.
Elongated pin holes. Repeated impacts oval the pin holes, after which the impeller can move slightly on its shaft and the pin cannot shear cleanly at its designed load.
Surface rust across the blades is normal and is not a reason to replace a snow blower impeller. The Canadian Centre for Occupational Health and Safety guidance on de energising powered equipment applies before you put a hand anywhere near the impeller housing.
Parts to check before buying a snow blower impeller
Two parts to rule out or compare before committing to a new impeller.
Auger Belt (Gates Truflex 4LXP700): check and replace this first, because a slipping belt produces the identical symptom.

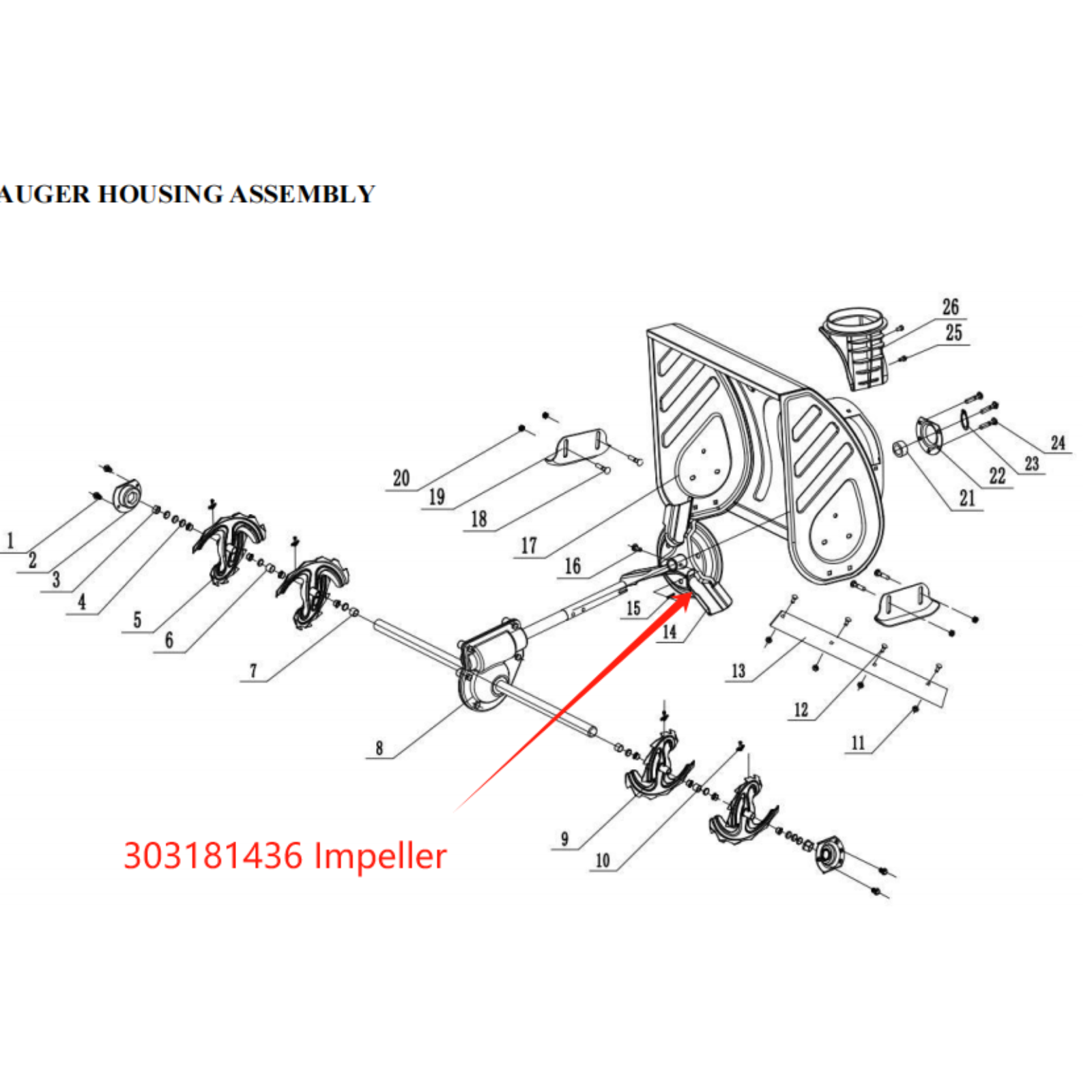

Impeller, Stock #303181436 impeller: a second impeller at a different size and price, so confirm which your machine takes.
Common questions
My machine clears snow but barely throws it. Is the impeller worn?
Usually not. Check the drive belt first: a glazed or stretched belt slips exactly when snow arrives, which is when impeller speed matters. It is the most common cause and much cheaper.
Will a bigger engine make it throw further?
Almost never. Throw distance comes from impeller tip speed, which is set by rotational speed and impeller diameter, not by engine power.
What does a sheared impeller pin feel like?
A loud rattle with no throw at all. The impeller is free on its shaft. Like auger shear pins, it is designed to break so the gearbox survives an impact.
Is surface rust on the impeller a problem?
No. Impellers live in salted water and look it. Judge on blade shape and thickness at the roots, not on colour.
Why does throw distance drop only in wet snow?
Wet snow needs a tighter impeller to housing clearance to be caught properly. If the gap has opened up, wet snow slips past the blade instead of being flung.
Is stock 303180702 the same as the other impeller you sell?
No. They are different part numbers at different sizes and prices. Measure your old impeller or check the parts diagram before ordering.
Can a bent impeller damage anything else?
Yes. Even a slight bend unbalances it, and unbalance at impeller speed wears out the shaft bearings quickly.
