The PSS1210LED auger belt is stock number 302040091, listed against one specific PowerSmart model. Model specific belts look like the easy case, order by model name and you are done, and that is exactly why they generate more wrong orders than the generic ones. What you are looking at is a pss1210led auger belt. The detail that follows applies to this one and not to the category.
On this page
- Choosing a pss1210led auger belt for a Canadian driveway
- Specifications
- Why the model plate alone will not pick a pss1210led auger belt
- Confirming the pss1210led auger belt fit before ordering
- What a pss1210led auger belt actually does
- When a pss1210led auger belt is finished
- Parts to check with a pss1210led auger belt
- Common questions
Choosing a pss1210led auger belt for a Canadian driveway
Most belts in this catalogue are identified by their dimensions: a section, a length, a construction. Anything matching those numbers fits. A model specific listing works the other way round, tying a part to a machine rather than to a measurement.
That is convenient when the machine in front of you is genuinely a PSS1210LED. It becomes a problem when it is a PSS1210 without the LED suffix, or a PSSW1210, or a machine whose housing was replaced at some point in its life. The PSS1210LED auger belt is specified for one configuration, and neighbouring model codes in the same family do not reliably share it.
Specifications
| Specification | Detail |
|---|---|
| Stock number | 302040091 |
| Listed fitment | PSS1210LED |
| Part type | Auger drive belt |
| Identified by | Model, not dimensions |
| Acts as | The clutch, via the idler tensioner |
| Related | Idler pulley, drive pulley, auger control cable |
Why the model plate alone will not pick a pss1210led auger belt
Three situations catch people out, and all three are common on a machine more than a few years old.
Suffixes matter and are easy to miss. LED, W, A, B and similar letters usually mark a real configuration difference, not a colour or a trim level. On a worn plate the suffix is often the first thing to become unreadable.
The plate records what left the factory. If a previous owner replaced a housing, a gearbox or an engine, the machine in front of you is no longer entirely the machine on the plate.
Manufacturers revise mid production. The same model name can carry different pulley centres across production years, which changes the belt length.
So treat the model as a strong hint and confirm against the belt itself.
Confirming the pss1210led auger belt fit before ordering
Two minutes with the old belt settles it, and it is worth doing every time.
Take the cover off with the power disconnected and read the code moulded into the outer face of the existing belt. Clean the face if you need to. That code is the specification, and it beats any model lookup.
If the code is gone, measure. Wrap a tape around the outer face of the intact belt for the length, then measure the top width and the depth. Those three figures identify any V belt. Never lay a broken belt flat and double it, which reads several inches short.
If you have neither the code nor an intact belt, run a string around the pulley path with the idler at mid travel and measure that. It gets you into the right size band, and the snow blower repair guide covers the pulley path on these machines.
What a pss1210led auger belt actually does
The PSS1210LED auger belt is not simply transmitting drive. It is also the clutch.
Squeeze the auger control and an idler pulley swings across, tensioning the belt and engaging the auger. Release it and the idler retreats, the belt slackens and the auger coasts to a stop. Every engagement is a deliberate, controlled slip while the belt takes up load, which is why the belt wears and the shafts do not.
It follows that a belt adjusted too tight never fully releases, so the auger keeps turning after you let go. That is a safety fault, not a quirk. Test it after any belt change: engage the auger, release the control, and the auger should stop within about five seconds. Our snow blower safety guide covers the wider habits, and Canadian Centre for Occupational Health and Safety covers isolating powered equipment before you work on it.
When a pss1210led auger belt is finished
Belts announce themselves well before they strand you, and the order is consistent.
First a short squeal as the auger engages, which is the belt slipping while it takes up load. Then a drop in throw distance in wet snow only, because dense snow loads the drive far harder than powder. Then the auger slowing under load, then a hot rubber smell, then nothing.
Inspect for glazing and cracking. A healthy belt has matt, slightly rough side faces; a glazed one is shiny and polished and cannot grip however sound it looks. Flex it backwards and look at the inner face: fine transverse cracks mean the rubber has hardened with age, which is what finishes belts on machines that sit for years between hard winters.
Then check the ride height. A serviceable pss1210led auger belt sits with its top face level with or just above the pulley rim. One that has sunk into the groove has either worn or is running in a worn pulley, and the second case will destroy the replacement.
Parts to check with a pss1210led auger belt
Two parts you will have in your hands anyway while the cover is off.

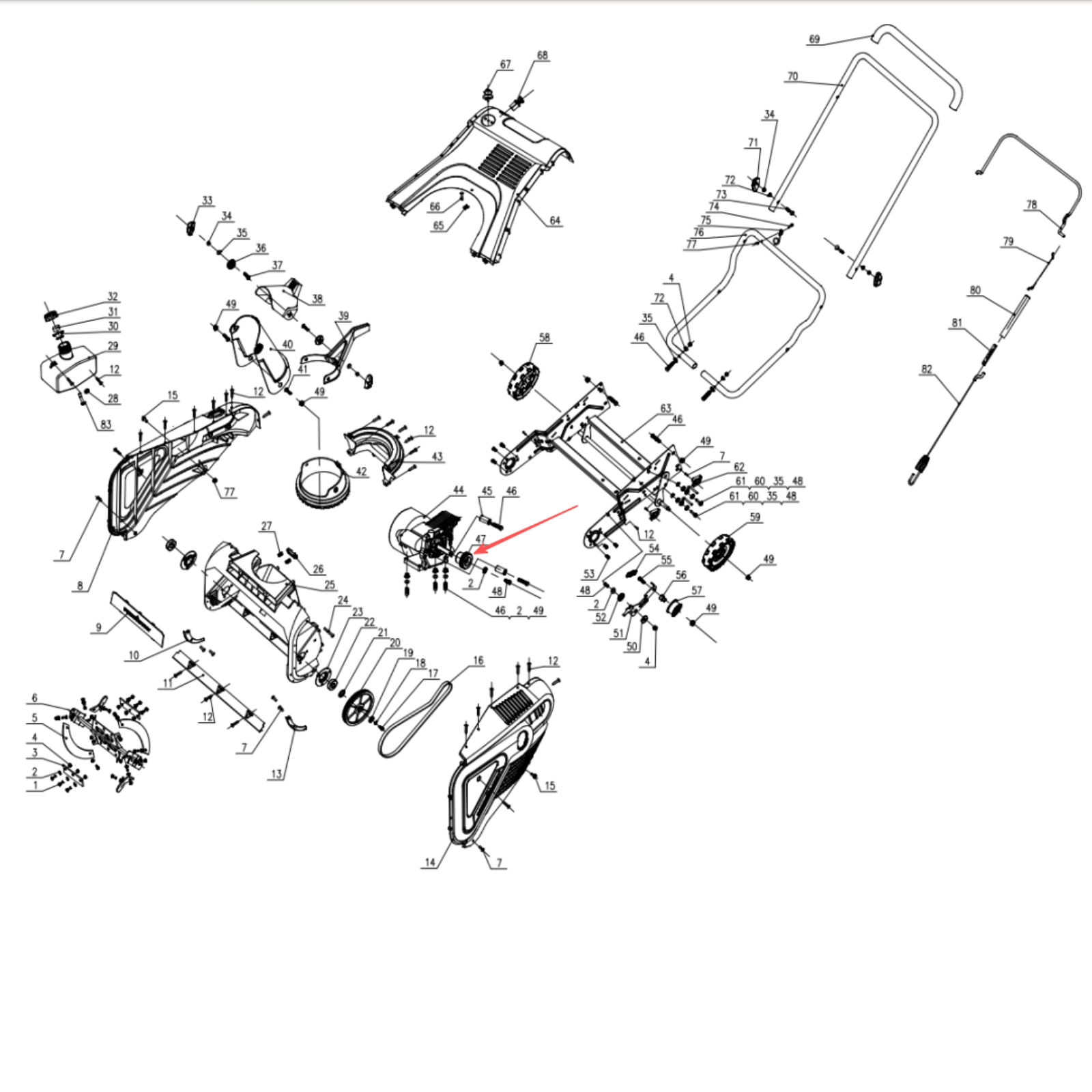

Small Belt Pulley: a worn groove lets even a correct belt sink and glaze within weeks.
Belt Cover: the cover has to come off for this job, so replace it if it is cracked.
Common questions
Does the PSS1210LED auger belt fit a PSS1210 without the LED suffix?
Not reliably. Suffixes usually mark a real configuration difference rather than trim. Confirm against the code on your existing belt rather than the model name.
Where do I find the code on my old belt?
Moulded into the outer face. Wipe the face clean if it is dirty. That code is the specification and it beats any model lookup.
My model plate is unreadable. What now?
Measure the intact belt: outside length by wrapping a tape around the outer face, plus top width and depth. Those three figures identify any V belt.
Can the same model take different belts?
Yes. Manufacturers revise mid production, and pulley centres can change between years, which changes belt length even under the same model name.
Why does my auger keep turning after I release the control?
The belt is adjusted too tight, so the idler never fully releases the tension. That is a safety fault and should be corrected before using the machine.
Do I need to replace the pulley too?
Check it. Drop the new belt into the groove: if it sinks below the pulley rim instead of sitting level with it, the groove has worn and it will glaze the new belt.
